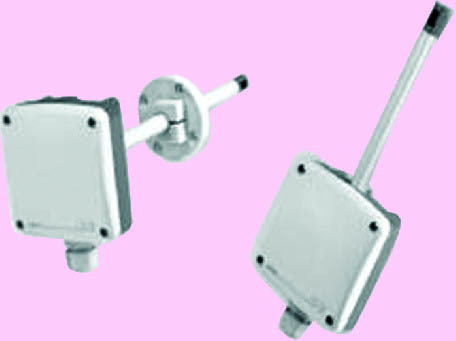

Air Velocity Transmitter

Air Velocity Transmitter
Air Velocity Transmitter
Product Code : 01
Brand Name : RENAKE SALES & SERVICES
Product Description

We are counted amongst the leading manufacturers, exporters and suppliers of a broad range of Air Velocity Transmitter. Ideal for monitoring air flow, this transmitter is widely utilized in research laboratories, weather forecasting, defence, etc. Offered transmitter is manufactured using optimum quality components with the help of cutting-edge technology. Moreover, this Air Velocity Transmitter is available in numerous technical specifications as per the exact needs of clients at a very affordable price.

Features:

  • Accurate reading

  • Low angular dependance

  • High stabilization

  • User friendly

Technical Data:

Measuring values

  • Working range 1) 0...10m/s (0...2000ft/min)

  • 0...15m/s (0...3000ft/min)

  • 0...20m/s (0...4000ft/min)

Output 1) 0 - 10 V -1 mA < IL < 1 mA

4 - 20 mA RL< 450 W


Response time t90

1) 2) typ. 4 sec. or typ. 0.2 sec. (at constant temperature)

General:

  • Current consumption for AC supply max. 150 mA for DC supply max. 90 mA

  • Electrical connection screw terminals max. 1.5 mm2 (AWG 16)

  • Electromagnetic compatibility EN 50081-1

  • EN 50082-1 EN 50082-2

  • Housing/protecting class Polycarbonate / IP65, Nema 4 with LC display IP40
