Chart Recorder

Chart Recorder
Chart Recorder
Send Inquiry
Product Code : RSS-18
Brand Name : RENAKE SALES & SERVICES
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description

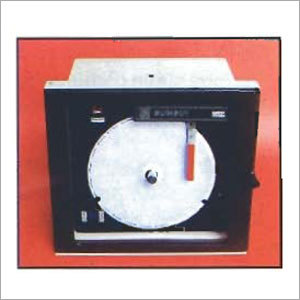

Owing to our expertise in this field, we are passionately engaged in manufacturing, exporting and supplying highly efficient Circular Chart Recorder. Offered recorder finds its application in heat treatment, environmental testing, food processing, pharmaceutical, etc. Besides, our talented professionals manufacture this recorder with advanced engineering concepts in order to ensure its superior performance. Further, our clients can get this Circular Chart Recorder in numerous technical specifications at pocket friendly prices.

Features:

  • High accuracy in results

  • Compact design

  • Efficient performance

  • Trouble-free operation

Technical Specifications:

  • Circular chart Recorder: Input: Defined (pl. specify)
  • Range: to specify
  • Chart Speed: 1 day or 7 day one revolution
  • Chart dia: 150 mm(6") or 250 mm (10")
  • Power Supply: 240 VAC/ 50hz
  • Optional: Digital display built in
  • Cut out size: Sunrek 150 = 189 x 189 sunrek 250 = 340 x 340
  • No. of pens: Sunrek - 150 -1 pen, sunrek - 250 -1 pen 4.2 pen

Model

MCR-40

MCR-60

MCR-100

MCR-100 TP

Panel cut out (mm)

152x152x150

184x184x150

344x344x150

344x344x150

Chart Diameter

4

6

10

10

Chart Speed selectable

8 hrs
12 hrs
24 hrs
168 hrs

8 hrs
12 hrs
24 hrs
168 hrs

8 hrs
12 hrs
24 hrs
168 hrs

8 hrs
12 hrs
24 hrs
168 hrs

No. of Pen

Single pen

Single pen

Single pen

Two pen

Input signal selectable

RTD
4 to 20mA
RTD
4 to 20mA
RTD
4 to 20mA
RTD
4 to 20mA

Range Selectable


-100o to 0oC
-30o to 30oC
0o to +10oC

-100oC to 0oC
0oC to -100oC
-50oC to 50oC
50oC to -50oC
0oC to 10oC
10oC to 0oC
0oC to 200oC

-100oC to 0oC
0o to -100oC
-50oC to 50oC
50oC to -50oC
0oC to 10oC
10oC to 0oC
0oC to 200oC

-100oC to 0oC
0oC to -100oC
-50oC to 50oC
50oC to -50oC
0oC to 10oC
10oC to 0oC
0oC to 200oC

Power supply

12 VDC

230VAC

12 VDC

230VAC

12 VDC

230VAC

12 VDC

230VAC

Communication output

RS-485

Memory (optional)

USB port for pen drive with 10 revolution memory

Control output

Control relay output
