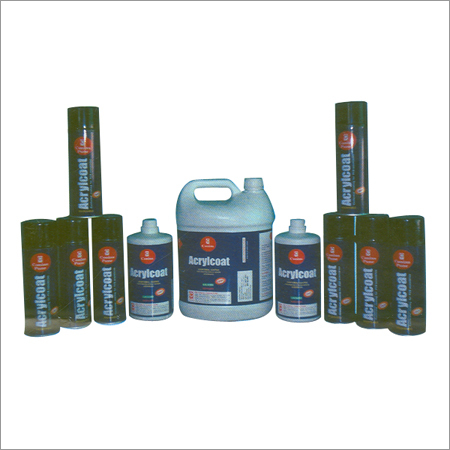

PCB Conformal Coating

PCB Conformal Coating
PCB Conformal Coating
Product Code : Coating Equipments
Product Description

We are the renowned entity engrossed in manufacturing, exporting and supplying a broad variety of PCB Conformal Coating. This product is directly applied to PCB circuit board in order to protect it from air, humidity, temperature, moisture, etc. Besides, offered product is precisely processed with the use of latest technology and quality assured raw material in compliance with set industry norms. Further, our clients can easily avail this PCB Conformal Coating at industry leading price.

Features:

  • Excellent dielectric strength

  • Rust and fungus proof

  • Fast adhesion

  • Withstand high humidity

Technical Specifications

Appearance( Liquid &Coated Film)

Clear /Transparent/Smooth & Glossy

Specific Gravity (Density@25Deg C)

0-85 to 0.9

Viscosity@25Deg C

30-35 sec (Zans G1 Cup)

Flash Point

<40

Comparative Tracking Index (CTI Value)

600

Coating Thickness (Single/Double Light Coat )

20-22 Recomonded

Dielectric Strength

30 KV/mm

Thermal Cycling(MIL-I-46058-C-AR)

Meets Approval (C-DOT)

Moisture Resistance
(MIL-I-46058-C-AR)

Meets Approval (C-DOT)

Insulation Resistance

Meets Approval (C-DOT)

Fungus Resistance

Passes

Withstand Temperature (Film)

-50 to 130 Deg C

Coverage Area (20 ½â€š¼m Film 500 ml Aerosol)

2m2

Film Traceable

Under UV Lamp

Drying Time
Touch To Dry
Hard Dry
Pre &Post Heating of PCB For coating
@ 50 Deg C

5- 7 Min
2 Hrs
Dry with 1 Minute
Hard Dry- 5-10 Min

Curing Time

12-24 Hrs

Optimum Properties - Provides Protection Against High Voltage Arcing and crona shorts

7 Days
